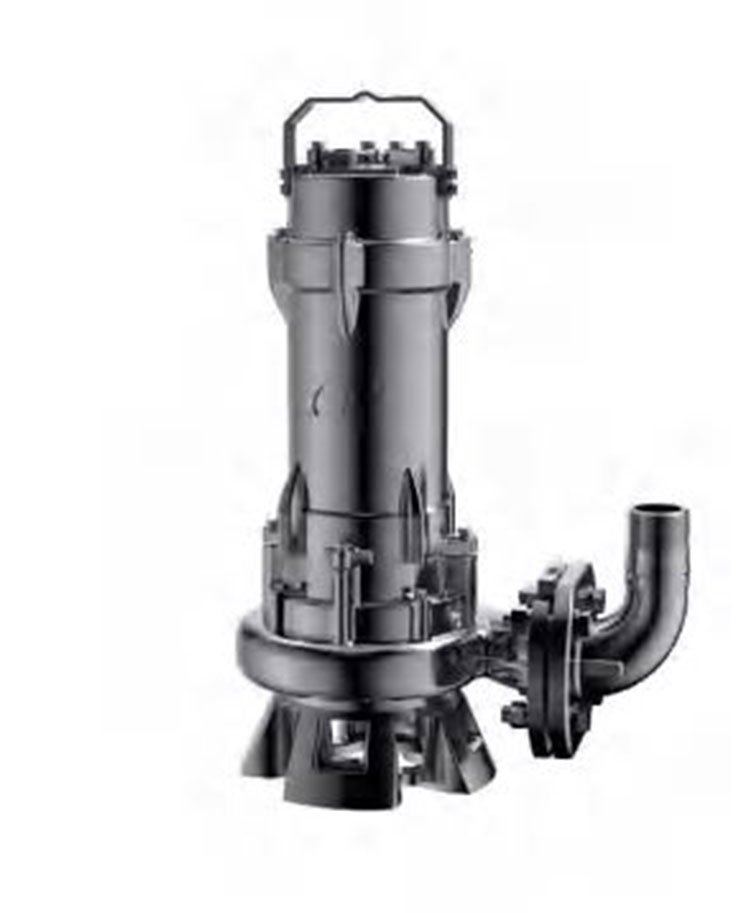

Vertical Cutting Submersible Sewage Pump (WQ-QG 50Hz)

TECHNICAL DESCRIPTION

•New cutting submersible sewage pumps
• Helical structure and impeller with sharp edge
• Better non-clogging characteristics
• Compact structure, small volume, low noise, remarkable energy-saving effect, convenient maintenance
• The cable is filled with epoxy glue, which can effectively prevent the water vapor from entering the motor or the water entering the motor along the crack
• Equipped with a thermal protector
• Mechanical seal with reasonable hard and corrosion-resistant materials greatly improves the service life of the pump
• Oil-resistant rubber sealing ring is used for static sealing at each fixed stop “O” type
• Lifting rings and screws in contact with water are in stainless steel 304.

APPLICATIONS

Wastewater discharge in factories, shopping malls, hospitals, hotels

Residential area, parking lot, municipal sewage, rainwater drainage ·

Sewage discharge from sewage treatment plants and livestock farms

Pumping of mud and grey water in construction sites and mines

Clear water tank pumping for agriculture and aquaculture

Wastewater discharge from biogas digesters

Water supply and drainage in other occasions

FEATURES AND USING LIMITS

-Water temperature: 0-40℃

-PH value: 6~10

-Medium density: ≤1.3g/cm

-Power supply: single-phase 220V±10%, 50Hz & Three-phase 380V±10%, 50HZ

-Thermal protector: built-in

-Maximum flow: 45m³/h

-Maximum lift: 36 m

-Cable length: 8 meters

Insulation class: F

Protection class: IP68

Vertical Cutting Submersible Sewage Pump (WQ-QG 50Hz)
